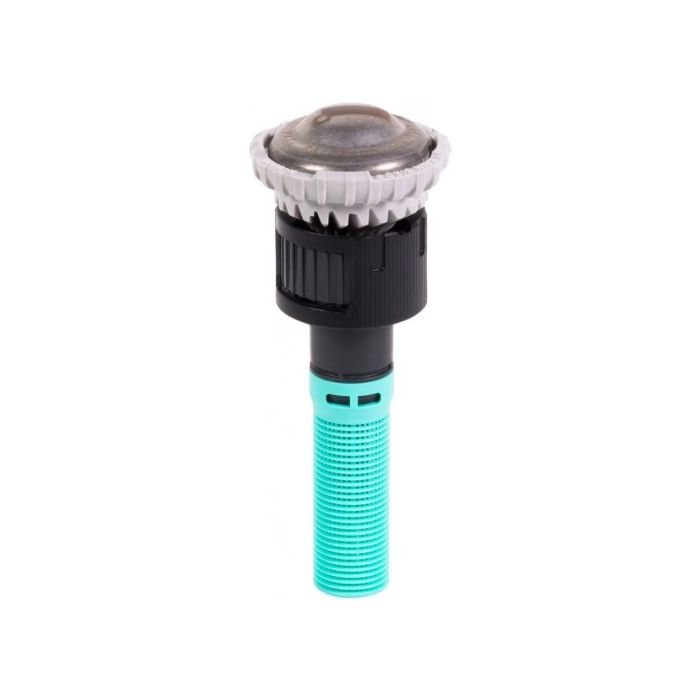

R-VAN Rotary Nozzles
Get accurate, even delivery of water in the pattern you need R-VAN provides a full line of high-performance rotary nozzles that are engineered to deliver the most efficient coverage while offering installation and maintenance that's faster and easier than any other rotary nozzle on the market. Plus, R-VAN Rotary Nozzles are designed with unique features, such as tool-free adjustment, pull-to-flush, and matched precipitation. Because every drop matters.
The Perfect Pair for Pressure Regulation
In stock
- SKU
- RBR-VAN-LCS-GROUP
As low as:
CA$10.50
As low as:
Intelligent irrigation systems for sustainable water management.
Description / Rotary Nozzle Corner and Side Strips - RBR VAN GROUP
R-VAN Rotary Nozzles
Get accurate, even delivery of water in the pattern you need R-VAN provides a full line of high-performance rotary nozzles that are engineered to deliver the most efficient coverage while offering installation and maintenance that's faster and easier than any other rotary nozzle on the market. Plus, R-VAN Rotary Nozzles are designed with unique features, such as tool-free adjustment, pull-to-flush, and matched precipitation. Because every drop matters.
The Perfect Pair for Pressure Regulation
When used with 1800® PRS-45 Sprays, Rain Birds R-VAN Rotary Nozzles provide ultimate efficiency at 45 psi.
Features
Matched precipitation across radius, arcs, and pattern types
Low precipitation rate reduces run-off and erosion
Adjust arc and radius without tools
A pull-up to flush feature clears the nozzle of dirt and debris
Color coded and laser marked for easy identification of R-VAN model
Maintains efficient performance at high operating pressures without misting or fogging
Compatible with most models of Rain Bird spray bodies, risers and adapters
Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation from 8' to 35' (2.4m to 10.7m)
Three year trade warranty
Specs
Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
Recommended Operating Pressure: 45 psi (3.1 bar)
Spacing: 8' to 24' (2.4 to 7.3m)
Adjustments: Arc and radius should be adjusted while water is running
Model Comparison
8' - 14' (2.4 to 4.6m)
- R-VAN14: 45° - 270° Adjustable Arc
- R-VAN14-360: 360° Full Circle
13' - 18' (4.0 to 5.5m)
- R-VAN18: 45° - 270° Adjustable Arc
- R-VAN18-360: 360° Full Circle
17' - 24' (5.2 to 7.3m)
- R-VAN24: 45° - 270° Adjustable Arc
- R-VAN24-360: 360° Full Circle
Strip Nozzles
- R-VAN-LCS: 5' x 15' (1.5 x 4.6m) Left Corner Strip
- R-VAN-RCS: 5' x 15' (1.5 x 4.6m) Right Corner Strip
- R-VAN-SST: 5' x 30' (1.5 x 9.1m) Side Strip
More Information
| Title | RBR-VAN-LCS - Rotary Nozzle 5x15 LEFT CORNER STRIP |
|---|---|
| Short Description | Rotary Nozzle 5x15 LEFT CORNER STRIP |
| Manufacturer | Rain Bird |
