Description / 4" Rainbird 6500 (Falcon) Rotor - F4FC GROUP

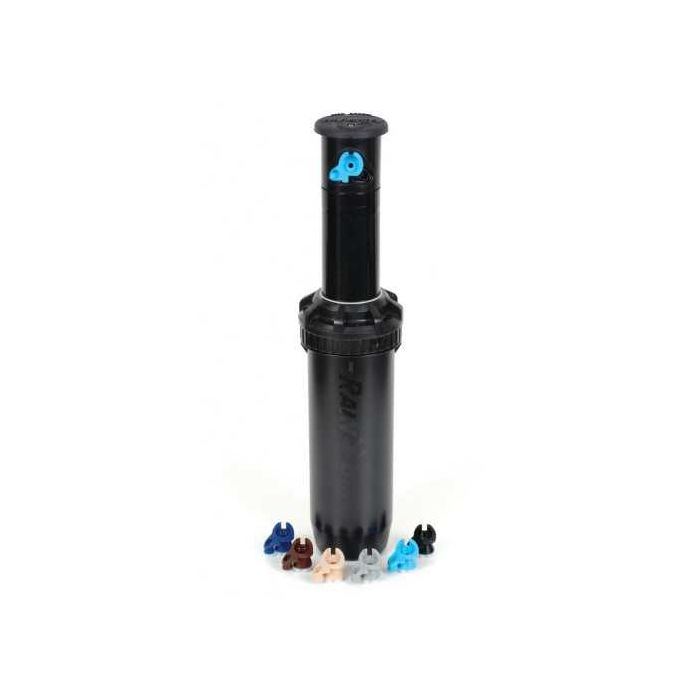

4" Rainbird 6500 (Falcon) Rotor
These rotors come in both Full Circle (F4FC) and Part Circle (F4PC)
Full Circle (F4FC) does not have an adjustable arc.
Part Circle (F4PC) is fully adjustable from 0 to 360 degrees.
Features
Ratcheting stem just like standard spray bodies
3-port, color-coded Rain Curtain nozzles for optimal long range, midrange, and close-in watering
SAM Seal-A-Matic check valve
Heavy-duty, stainless steel retract spring ensures positive pop-down
5 year warranty
Specs
Precipitation Rate: 0.37 to 1.31 inches per hour (9 to 33 mm/h)
Radius: 39 to 65 feet (11,9 to 19,8 m)
Pressure: 30 to 90 psi (2,1 to 6,2 Bars)
Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
Rain Curtain Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
1" (26/34) female NPT or BSP threaded inlet
SAM check device holds up to 10 feet (3,1 m) of elevation change
Nozzle outlet trajectory is 25°
Optional Features:
Stainless steel (SS) Risers help deter vandalism on public turf areas
Purple cover (NP) For non-potable systems
Dimensions
Overall height: 8 1/2" (21,6 cm)
Pop-up height: 4" (10,2 cm)
Exposed surface diameter: 2" (5,1 cm)
Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down
Model Comparison
4" Part Circle:
- 6504-PC: Part-circle
4" Full Circle:
- 6504-FC: Full-circle
Nozzle Kits:
- B81610: Low Flow Kit
- B81620: Standard Flow Kit
More Information
| Title | Rain Bird Falcon Group |
|---|---|
| Short Description | Sprinkler |
| Manufacturer | Rain Bird |
