Valve Sizing and Body Configurations

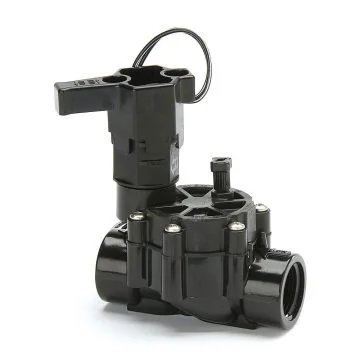

Selecting the correct electric valve size prevents excessive pressure loss and maintains optimal water velocity across an irrigation layout. Residential systems commonly employ 1-inch inline globe valves to manage standard flow rates for lawn sprinklers and drip grids. Larger commercial and agricultural properties require high-capacity 1.5-inch, 2-inch, or 3-inch configurations to process superior fluid volumes without creating destructive water hammer inside the main piping.
Angle configurations provide an alternate routing solution by combining a 90-degree inlet-to-outlet turn directly into the valve body design. This structural choice reduces the total number of secondary fittings needed inside subsurface valve boxes, lowering total system friction loss and simplifying deep field pipe connections.
Mechanical Design and Flow Control Performance

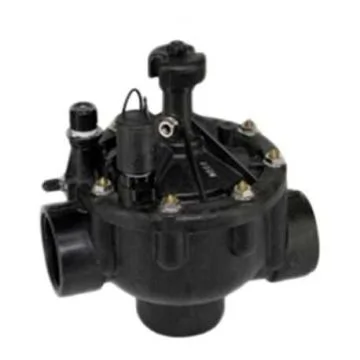

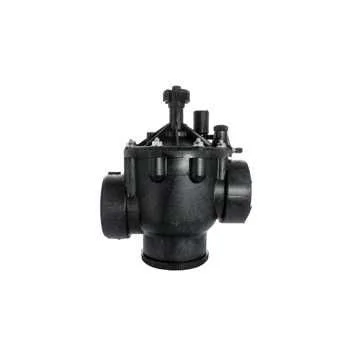

Heavy-duty electric zone valves feature robust physical construction built to handle constant pressure loads up to 220 PSI. Models like the Rain Bird PGA series incorporate fabric-reinforced rubber diaphragms and sturdy PVC bodies to prolong operating life under harsh conditions. Industrial options like the Toro P-220 series employ glass-filled nylon construction to resist stress during high-velocity switching cycles.
Manual flow control handles allow for precise physical calibration of individual zone lines. Adjusting the flow control stem controls down downstream pressure, which prevents fine misting at spray heads and tunes the line to match the specific hydraulic requirements of low-volume drip lines or micro-spray zones.
Operational Reliability and Field Maintenance
These remote control units operate via standard 24 VAC solenoids that wire straight back to a central automated controller clock. Captured hex screws and heavy bonnet rings simplify routine seasonal service, allowing technicians to clean internal filter screens fast without losing critical metal parts in the grass.
Integrated internal and external bleed mechanisms allow operators to flush out trapped sediment and execute manual zone tests during spring system activations without energizing the electronic control system. This layout ensures consistent maintenance access throughout the irrigation season.
