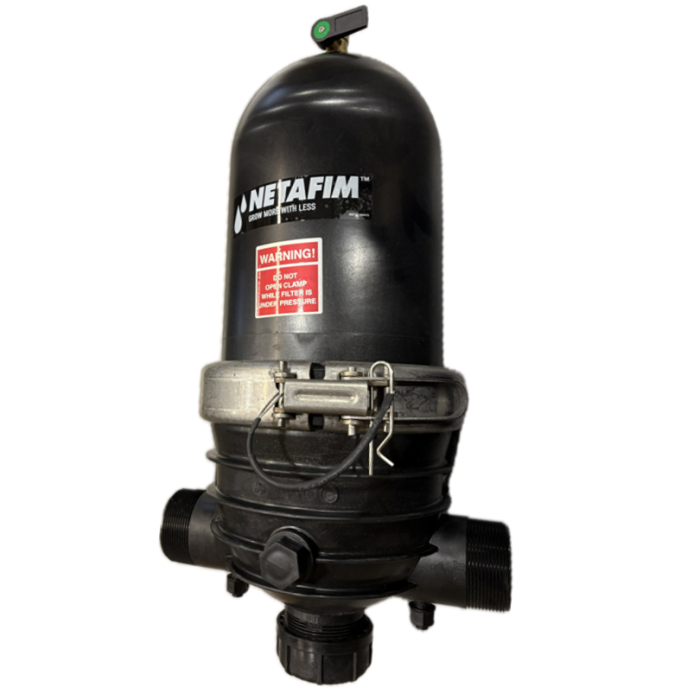

2" Netafim Arkal Dual HP Disc Filter - DF200 GROUP

2" Netafim Arkal Dual HP Disc Filters

The Netafim Arkal Disc Filters are a high-performance, compact filtration unit designed for irrigation systems to prevent clogging. Featuring stacked, color-coded grooved thermoplastic discs, it filters particles 80 to 120 Mesh with a maximum flow rate of 120 GPM and pressure up to 174 PSI.

Key Features & Benefits:

• Deep Filtration: The discs create a 3D, cross-hatch matrix that traps organic materials, debris, and algae more effectively than screens.
• Versatile Use: Ideal for residential, commercial, and greenhouse irrigation to protect emitters, drippers, and sprinklers.
• Low Maintenance: The durable, non-collapsible, and corrosion-resistant discs are easily removed for quick cleaning.
• Connection Type: 2" inch Male Pipe Thread (MPT) inlet and outlet.
• Flow Range: 40 - 120 Gallons per Minute (GPM).
• Maximum Pressure: 174 psi.
• Materials: The filter body and cover are made from reinforced polyamide, the disc rings from polypropylene, O-rings from EPDM rubber

Spec Sheet

The difference between mesh and micron:

Mesh and micron measure filter opening size, but mesh counts the openings per inch (Coarser Screens), while microns measure the exact opening size in micrometers (Finer Filters). Mesh is a count, while micron is a precise physical dimension

Mesh:

Number of opening in one linear inch on the filter

Micron:

A unit of length equal to one millionth of a meter

Different driplines require different mesh/microns.

• Toro dripline require 120 mesh
• Toro Aqua-Traxx Azul Driptape 80 mesh
• NDS dripline require 120 mesh
• Netafim techline require 140 mesh
