Rain Bird International Inc.  |  SKU: 5000SPCSAM

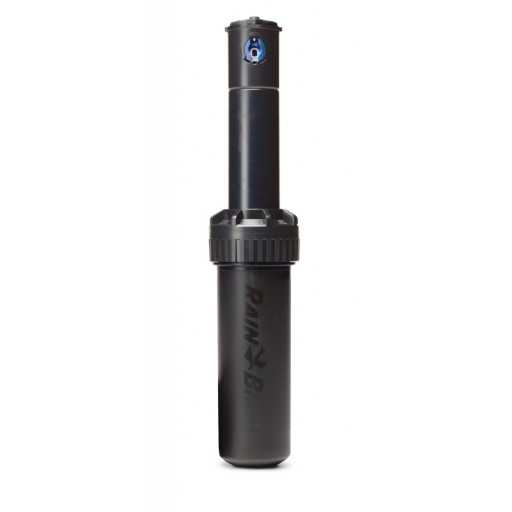

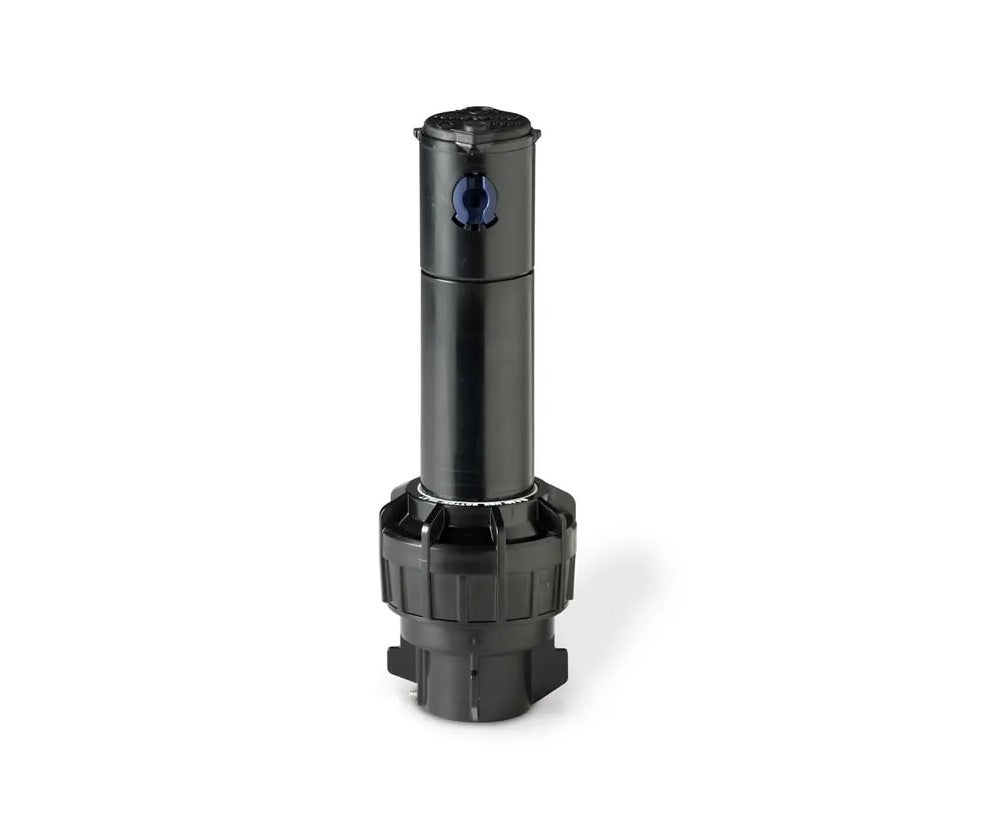

Rainbird 5000 Series

$39.20
Shipping calculated at checkout.

Format

Description

Rainbird 5000 Part Circle Shrub Rotor W/ Check Valve

Features

Oversized wiper seal prevents leaks and protects internals from debris
Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
A history of proven performance and reliability tested in millions of installations
Self-flushing arc adjustment port that prevents buildup of debris
5 year trade warranty

Specs

Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
Radius: 25 to 50 feet (7.6 to 15.2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25 to 65 psi (1.7 to 4.5 bar)
Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
Reversing full- and part-circle adjustment from 40° - 360°
Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
Optional Features
Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6" models)
Purple cover (NP) :for non-potable systems

Dimensions

Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
Exposed surface diameter: 1 5/8" (4,1 cm)

Model Comparison

Shrub Models:

  • 5000SPCSAM: Shrub Part Circle SAM
  • 5000+SPCSAM: Shrub Plus Part Circle SAM
  • 5000+SPCSAMNP: Shrub Plus Part Circle SAM Non Potable
  • 5000+SPCSAMR: Shrub Plus PRS Part Circle SAM
  • 5000+SPCSAMRN: Shrub Plus PRS Part Circle SAM Non Potable

4" Part Circle (adjustable from 40° –360°):

  • 5004PC: 4" Part Circle
  • 5004PC20: 4" Part Circle w/2.0 Nozzle
  • 5004PC30: 4" Part Circle w/3.0 Nozzle
  • 5004PCSAM: 4" Part Circle SAM
  • 5004PCSAM20: 4" Part Circle SAM w/2.0 Nozzle
  • 5004PCNP: 4" Part Circle Non Potable
  • 5004+PC: 4" Plus Part Circle
  • 5004+PC20: 4" Plus Part Circle w/2.0 Nozzle
  • 5004+PC30: 4" Plus Part Circle w/3.0 Nozzle
  • 5004+PCSAM: 4" Plus Part Circle SAM
  • 5004+PCR: 4" Plus Part Circle PRS
  • 5004+PCSAMR: 4" Plus Part Circle SAM PRS
  • 5004+PCSAMR20: 4" Plus Part Circle SAM PRS w/2.0 Nozzle
  • 5004+PCSAMR30: 4" Plus Part Circle SAM PRS w/3.0 Nozzle
  • 5004+PCSAMRNP: 4" Plus Part Circle SAM PRS Non Potable

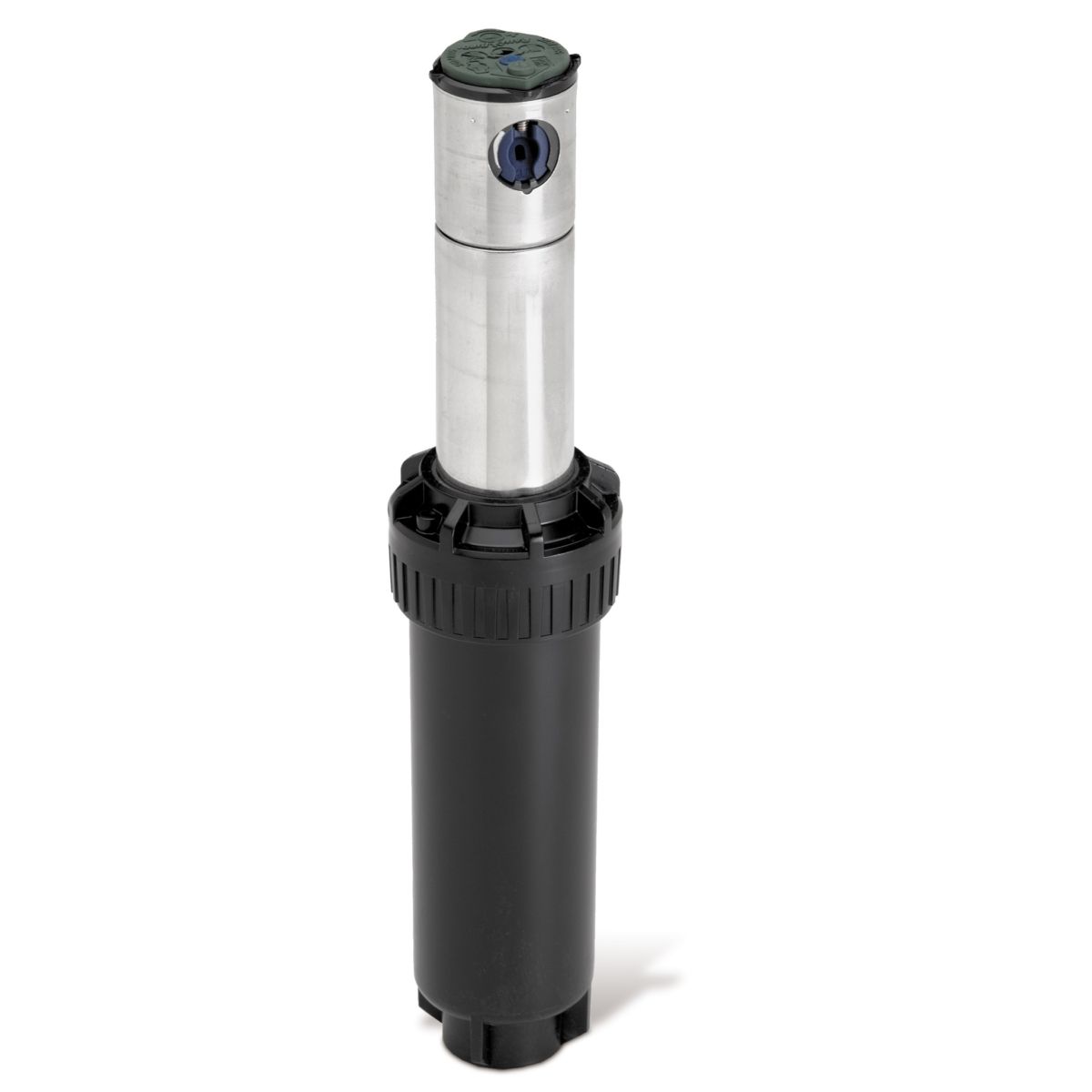

  • 5004+PCSAMRSS: 4" Plus Part Circle SAM PRS Stainless Steel
  • 5004+PCSAMRNS: 4" Plus Part Circle SAM PRS Stainless Steel Non Potable

4" Full Circle (360 degrees only):

  • 5004FC: 4" Full Circle
  • 5004+FC: 4" Plus Full Circle
  • 5004+FCSAM: 4" Plus Full Circle SAM
  • 5004+FCSAMR: 4" Plus Full Circle SAM PRS
  • 5004+FCSAMRSS: 4" Plus Full Circle Stainless Steel SAM PRS

6" Part Circle (adjustable from 40° –360°):

  • 5006PC: 6" Part Circle
  • 5006PC30: 6" Part Circle w/ 3.0 Nozzle
  • 5006+PC: 6" Plus Part Circle
  • 5006+PCSAM: 6" Plus Part Circle SAM
  • 5006+PCSAMNP: 6" Plus Part Circle SAM Non Potable
  • 5006+PCSAMR: 6" Plus Part Circle SAM PRS
  • 5006+PCSAMRNP: 6" Plus Part Circle SAM PRS Non Potable
  • 5006+PCSAMRSS: 6" Plus Part Circle SAM PRS Stainless Steel
  • 5006+PCSAMRNS: 6" Plus Part Circle SAM PRS Stainless Steel Non Potable

12" Part Circle (adjustable from 40° –360°):

  • 5012+PCSAMR: 12" Plus Part Circle SAM PRS
  • 5012+PCSAMRNP: 12" Plus Part Circle SAM PRS Non Potable

Payment & Security

Payment methods

  • American Express
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Rain Bird International Inc.

Rainbird 5000 Series

From $25.00
Rainbird 5000 Part Circle Shrub Rotor W/ Check Valve

Features

Oversized wiper seal prevents leaks and protects internals from debris
Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
A history of proven performance and reliability tested in millions of installations
Self-flushing arc adjustment port that prevents buildup of debris
5 year trade warranty

Specs

Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
Radius: 25 to 50 feet (7.6 to 15.2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25 to 65 psi (1.7 to 4.5 bar)
Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
Reversing full- and part-circle adjustment from 40° - 360°
Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
Optional Features
Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6" models)
Purple cover (NP) :for non-potable systems

Dimensions

Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
Exposed surface diameter: 1 5/8" (4,1 cm)

Model Comparison

Shrub Models:

  • 5000SPCSAM: Shrub Part Circle SAM
  • 5000+SPCSAM: Shrub Plus Part Circle SAM
  • 5000+SPCSAMNP: Shrub Plus Part Circle SAM Non Potable
  • 5000+SPCSAMR: Shrub Plus PRS Part Circle SAM
  • 5000+SPCSAMRN: Shrub Plus PRS Part Circle SAM Non Potable

4" Part Circle (adjustable from 40° –360°):

  • 5004PC: 4" Part Circle
  • 5004PC20: 4" Part Circle w/2.0 Nozzle
  • 5004PC30: 4" Part Circle w/3.0 Nozzle
  • 5004PCSAM: 4" Part Circle SAM
  • 5004PCSAM20: 4" Part Circle SAM w/2.0 Nozzle
  • 5004PCNP: 4" Part Circle Non Potable
  • 5004+PC: 4" Plus Part Circle
  • 5004+PC20: 4" Plus Part Circle w/2.0 Nozzle
  • 5004+PC30: 4" Plus Part Circle w/3.0 Nozzle
  • 5004+PCSAM: 4" Plus Part Circle SAM
  • 5004+PCR: 4" Plus Part Circle PRS
  • 5004+PCSAMR: 4" Plus Part Circle SAM PRS
  • 5004+PCSAMR20: 4" Plus Part Circle SAM PRS w/2.0 Nozzle
  • 5004+PCSAMR30: 4" Plus Part Circle SAM PRS w/3.0 Nozzle
  • 5004+PCSAMRNP: 4" Plus Part Circle SAM PRS Non Potable
  • 5004+PCSAMRSS: 4" Plus Part Circle SAM PRS Stainless Steel
  • 5004+PCSAMRNS: 4" Plus Part Circle SAM PRS Stainless Steel Non Potable

4" Full Circle (360 degrees only):

  • 5004FC: 4" Full Circle
  • 5004+FC: 4" Plus Full Circle
  • 5004+FCSAM: 4" Plus Full Circle SAM
  • 5004+FCSAMR: 4" Plus Full Circle SAM PRS
  • 5004+FCSAMRSS: 4" Plus Full Circle Stainless Steel SAM PRS

6" Part Circle (adjustable from 40° –360°):

  • 5006PC: 6" Part Circle
  • 5006PC30: 6" Part Circle w/ 3.0 Nozzle
  • 5006+PC: 6" Plus Part Circle
  • 5006+PCSAM: 6" Plus Part Circle SAM
  • 5006+PCSAMNP: 6" Plus Part Circle SAM Non Potable
  • 5006+PCSAMR: 6" Plus Part Circle SAM PRS
  • 5006+PCSAMRNP: 6" Plus Part Circle SAM PRS Non Potable
  • 5006+PCSAMRSS: 6" Plus Part Circle SAM PRS Stainless Steel
  • 5006+PCSAMRNS: 6" Plus Part Circle SAM PRS Stainless Steel Non Potable

12" Part Circle (adjustable from 40° –360°):

  • 5012+PCSAMR: 12" Plus Part Circle SAM PRS
  • 5012+PCSAMRNP: 12" Plus Part Circle SAM PRS Non Potable
