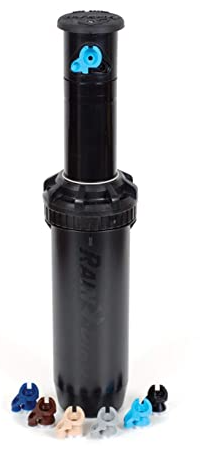

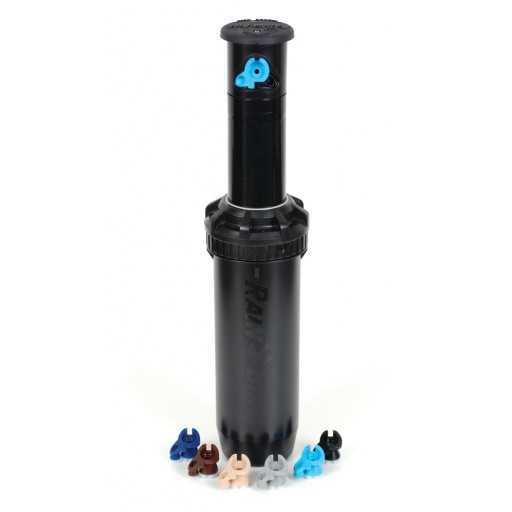

4" Rainbird 6500 (Falcon) Rotor

$79.90
Shipping calculated at checkout.

Format

Description

4" Rainbird 6500 (Falcon) Rotor

These rotors come in both Full Circle (F4FC) and Part Circle (F4PC)

Full Circle (F4FC) does not have an adjustable arc.

Part Circle (F4PC) is fully adjustable from 0 to 360 degrees.

Features

Ratcheting stem just like standard spray bodies
3-port, color-coded Rain Curtain nozzles for optimal long range, midrange, and close-in watering
SAM Seal-A-Matic check valve
Heavy-duty, stainless steel retract spring ensures positive pop-down
5 year warranty

Specs

Precipitation Rate: 0.37 to 1.31 inches per hour (9 to 33 mm/h)
Radius: 39 to 65 feet (11,9 to 19,8 m)
Pressure: 30 to 90 psi (2,1 to 6,2 Bars)
Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
Rain Curtain Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
1" (26/34) female NPT or BSP threaded inlet
SAM check device holds up to 10 feet (3,1 m) of elevation change
Nozzle outlet trajectory is 25°
Optional Features:
Stainless steel (SS) Risers help deter vandalism on public turf areas
Purple cover (NP) For non-potable systems

Dimensions

Overall height: 8 1/2" (21,6 cm)
Pop-up height: 4" (10,2 cm)
Exposed surface diameter: 2" (5,1 cm)
Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down

Model Comparison

4" Part Circle:

  • 6504-PC: Part-circle


    4" Full Circle:

    • 6504-FC: Full-circle


      Nozzle Kits:

      • B81610: Low Flow Kit
      • B81620: Standard Flow Kit

      Performance Chart
