5" Rainbird 8000 Part/Full

$201.50
Shipping calculated at checkout.

Format

Description

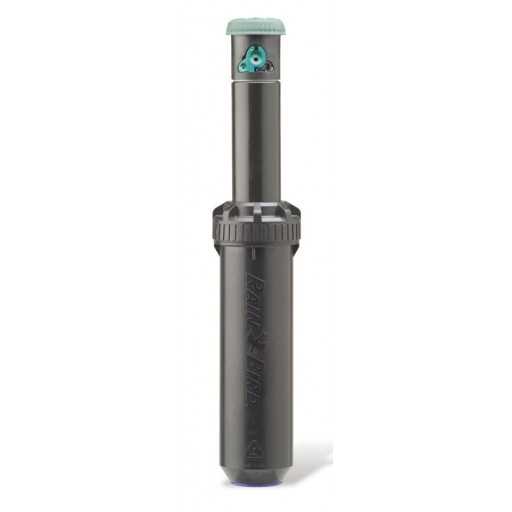

5" Rainbird 8000 Part/Full Circle Rotor

Features

Vandal resistance, brass reinforced turret for increased side impact durability
Memory Arc® returns the rotor to its original arc setting
Non-strippable drive mechanism prevents damage from vandals
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit
Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
SAM Seal-A-Matic check valve
3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering
5 year warranty

Specs

Radius: 39 to 81 feet (11.9 to 24.7 m)
Precipitation rate: 0.48 to 1.23 inches per hour (12 to 31 mm/h)
Pressure: 50 to 100 psi (3.5 to 6.9 bar)
Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)
1" NPT or BSP female threaded inlet
SAM Seal-A-Matic™ check valve holds up to 10 feet (3.1 m) of elevation change
Nozzle outlet trajectory is 25º
Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
Optional Features:
Stainless steel (SS) riser helps deter vandalism on public turf areas
Purple cover (NP) for non-potable systems
Optional Sod Cup

Dimensions

Exposed diameter: 1 7/8" (4,8 cm)
Overall diameter: 3 1/8" (7,9 cm)
Overall height: 10 1/8" (25,7 cm)
Pop-up height: 5" (12,7 cm)
Note: Pop-up height is measured from cover to the primary nozzle port. Overall body height is measured popped down

Model Comparison



  • 8005: 1" NPT female threaded inlet
  • 8005-NP: 1" NPT female threaded inlet; non-potable cover
  • 8005-SS: 1" NPT female threaded inlet; stainless steel
  • 8005-NP-SS: 1" NPT female threaded inlet; stainless steel and non-potable cover

Nozzle Kits:

  • B81610: Low Flow Kit
  • B81620: Standard Flow Kit
  • B81630: High Flow Kit



Peformance Chart
